Typical application: Marine & industry for oil, water +++
ISO top flange for direct actuator mounting without bracket.
Available both as threaded BSP version and with BW weld ends.
1/2” – 1 1/2”: 63 bar
2”: 40 bar
| NR | PARTY NAME | MATERIAL |
|---|---|---|
| 1 & 2 | Bodysuit | 1.4408 / CF8M |
| 3 | Seat | PTFE |
| 4 | ball | AISI 316 |
| 5 | Shaft | AISI 316 |
| NR | PARTY NAME | MATERIAL |
|---|---|---|
| 6 | Gasket | PTFE |
| 7 | Washer | PTFE |
| 8 | O-ring | Viton |
| 9 | Groove | SS 304 |
| NR | PARTY NAME | MATERIAL |
|---|---|---|
| 10 | Gasket | PTFE |
| 11 | Washer | SS 301 |
| 12 | snap rings | SS 304 |
| 13 | Lever | SS 304 |
| 15–19 | Bolts, nuts & washers | SS 304 |

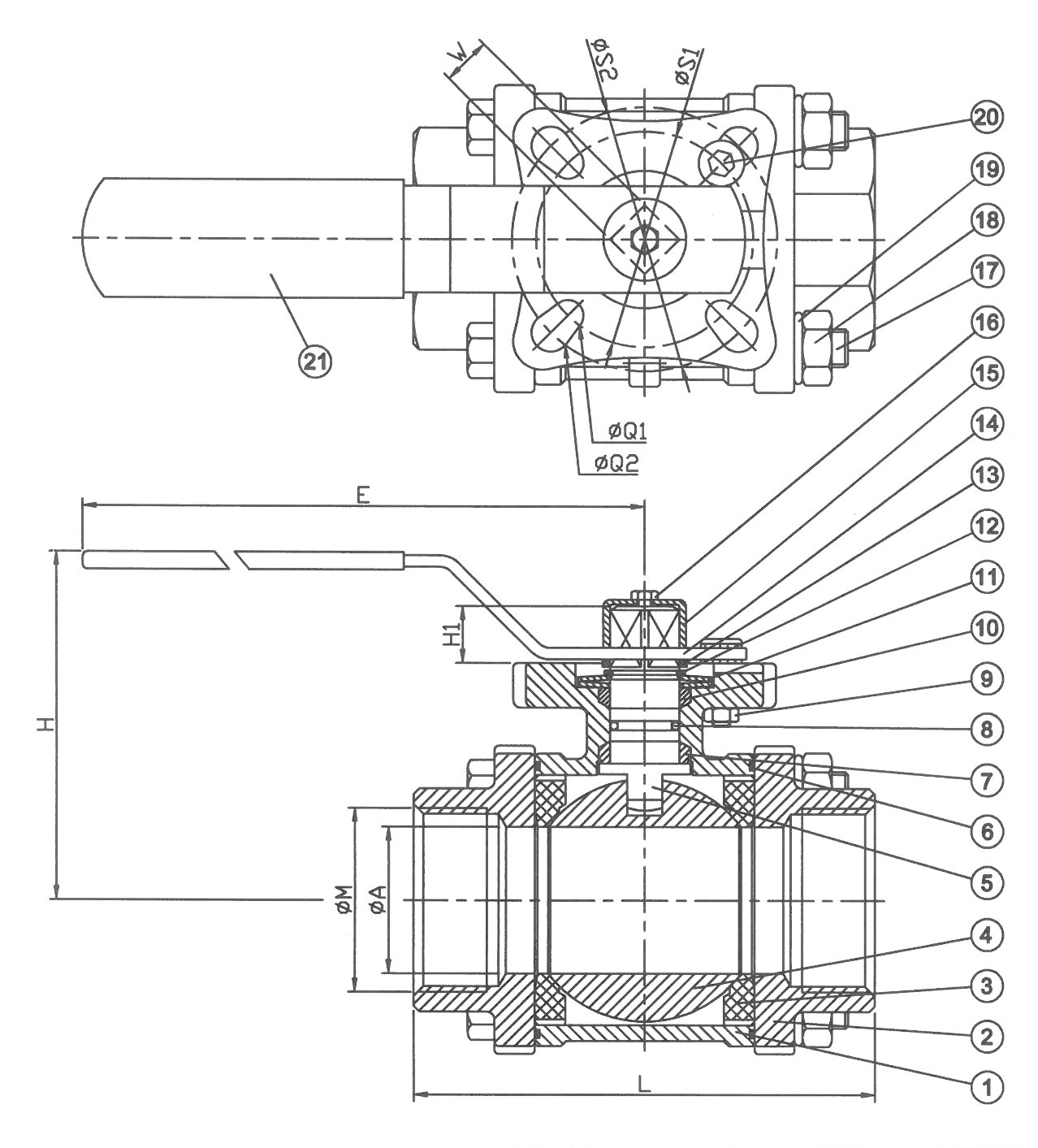

| DIM/SIZE | DN | ITEM NO. | ØA mm | And mm | W mm | H1mm | h mm | S1 | S2 | Lmm | MAX WORK PRESS. TEMP UP TO 120 ºC |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 / 4 " | 8 | 080031 | 11,5 | 135 | 9,0 | 10,0 | 58 | 42 | 50 | 70 | |
| 3 / 8 " | 12 | 080032 | 12,6 | 135 | 9,0 | 10,0 | 61 | 42 | 50 | 70 | |
| 1 / 2 " | 15 | 080033 | 15,0 | 135 | 9,0 | 10,0 | 66 | 42 | 50 | 75 | |
| 3 / 4 " | 20 | 080034 | 20,0 | 135 | 9,0 | 10,0 | 73 | 42 | 50 | 80 | |
| 1" | 25 | 080035 | 25,0 | 170 | 11,0 | 12,0 | 88 | 50 | 70 | 90 | |
| 1 1/4 ″ | 32 | 080036 | 32,0 | 170 | 11,0 | 12,0 | 93,5 | 50 | 70 | 110 | |
| 1 1/2 ″ | 40 | 080037 | 38,0 | 215 | 14,0 | 16,0 | 109,5 | 70 | 102 | 120 | |
| 2" | 50 | 080038 | 50,8 | 215 | 14,0 | 16,0 | 118,5 | 70 | 102 | 140 |
