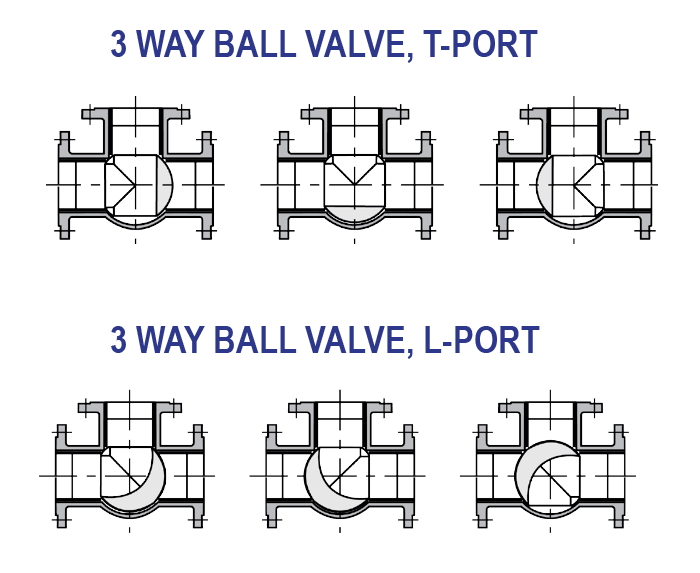

Throughput L-port and T-port
Carbon-filled PTFE seat
Other dimensions/materials on request
Available in stainless steel
| DO NOT | PART | MATERIALS | |
|---|---|---|---|
| CAST STEEL | STAINLESS STEEL | ||
| 1 | Hus | ASTM A216 | |
| 2 | Sete | PTFE | |
| 3 | Kule | ASTM A276-316 | |
| 4 | Packing | Flexible graphite/304 | |
| 5 | Lid | ASTM A216-WCB | |
| 6 | Bolt | ASTM A193 Gr.B7 | |
| 7 | Mother | ASTM A194 Gr.2H | |
| 8 | Packing | PTFE | |
| 9 | spindle | ASTM A182-F6a | |
| 10 | Spak | Carbon Steel | |
| DN | ART. NO. T-DRILL | ART. NO. L-DRILL | D mm | Lmm | D1 mm | D2 mm | WEIGHT kg |
|---|---|---|---|---|---|---|---|
| 25 | 115 | 180 | 85 | 68 | 10 | ||
| 40 | 150 | 220 | 110 | 88 | 13 | ||
| 50 | 165 | 240 | 125 | 102 | 24 | ||
| 65 | 185 | 260 | 145 | 122 | 36 | ||
| 80 | 200 | 280 | 160 | 138 | 42 | ||
| 100 | 220 | 320 | 180 | 158 | 70 |
