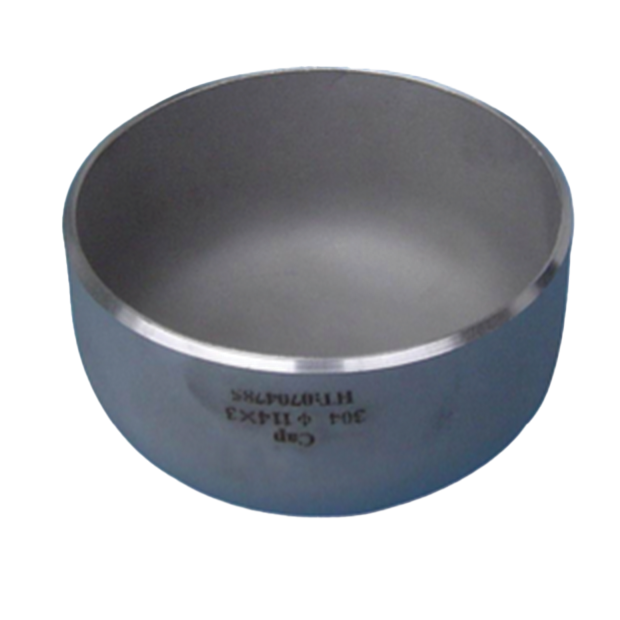

CAPS IN STEEL

Material P235GH EN 10028-2
DIN 2617

Certificate EN 10204-3.1 available

D mm T mm E mm WEIGHT kg ART. NR.
33,7 2,6 38 0,08 1208444
42,4 2,6 38 0,12 1208466
48,3 2,6 38 0,12 1208488
60,3 2,9 38 0,18 1208522
76,1 2,9 38 0,22 1208555
88,9 3,2 51 0,40 1208577
114,3 3,6 64 0,70 1208611
139,7 4,0 76 1,11 1208644
168,3 4,5 89 1,80 1208677
219,1 6,3 102 3,75 1208711
273,0 6,3 127 6,06 1208733
323,9 7,1 152 9,35 1208744
Information and technical data are given as guidance only
