Springloaded check valve Rubber coated body isolated from medium. Wafer type for mounting between flanges
This valve can be mounted in any direction, but please observe that distance from elbows, pumps or other components shall be minimum 8 times diameter of the pipeline.
| PART | MATERIAL |
|---|---|
| Body | Rubber coated ductile iron |
| Disc | Alu/Brz C958 (AISI 316 for type 1232) |
| Shaft | AISI 316 |
| Liner | NBR (1211) – EPDM (1221) – VITON (1232) |
| Springs | Nitronic / AISI 316 |
| Thrust washers | PTFE |

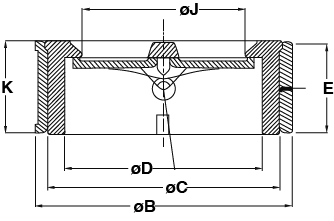

| DN | ART NO. 1211/NBR | ART NO. 1221/EPDM | ART NO. 1232/VITON | ØA mm | ØB mm | ØC mm | ØD mm | E mm | K mm | PRESSURE RATING |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 5560262 | 5560282 | 040008 | 159 | 101 | 84,8 | 66,7 | 50 | 54 | PN 16 |
| 65 | 5560263 | 5560283 | 040009 | 179 | 120 | 99 | 79,4 | 50 | 54 | PN 16 |
| 80 | 5560264 | 5560284 | 040010 | 200 | 133 | 116,4 | 92,1 | 50 | 54 | PN 16 |
| 100 | 5560265 | 5560285 | 040011 | 220 | 171 | 143,4 | 117,5 | 60 | 63,5 | PN 16 |
| 125 | 5560266 | 5560286 | 040012 | 250 | 198 | 172 | 144,4 | 63,8 | 66,7 | PN 16 |
| 150 | 5560267 | 5560287 | 040013 | 285 | 222 | 200,6 | 171,5 | 75,5 | 79,4 | PN 16 |
| 200 | 5560268 | 5560288 | 040014 | 340 | 280 | 254,5 | 222,3 | 97,2 | 99,7 | PN 10 |
| 250 | 5560269 | 5560189 | 406 | 336 | 309 | 276,2 | 98,4 | 101,6 | PN 10 | |
| 300 | 5560271 | 5560291 | 482 | 406 | 366,2 | 327 | 127 | 130,6 | PN 10 | |
| 350 | 5560272 | 5560292 | 533 | 450 | 394,2 | 358,8 | 177 | 181 | PN 10 | |
| 400 | 5560273 | 5560293 | 596 | 500 | 448,5 | 409,6 | 158 | 162 | PN 10 | |
| 450 | 5560274 | 5560294 | 635 | 545 | 505,8 | 460,4 | 181 | 184,2 | PN 10 | |
| 500 | 5560275 | 5560295 | 710 | 600 | 553,4 | 511,2 | 212 | 216 | PN 10 |
