EI TORQUE INTERFACE BOARDS
QT 250 and QT 800

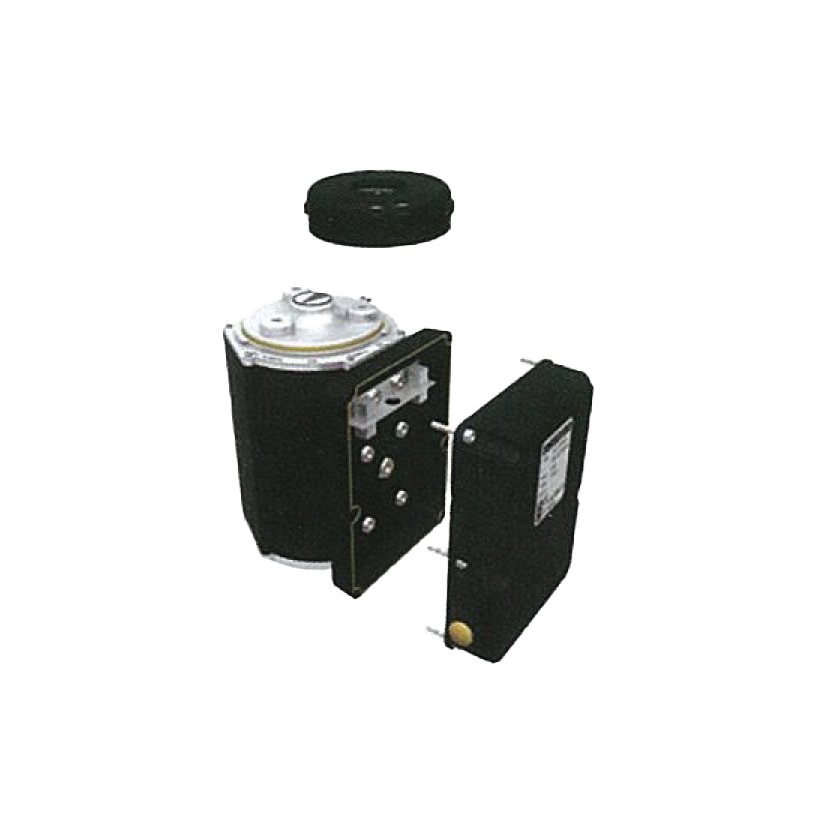

Power supply and interface is delivered in separate box, and are easy to install.

I. Easy to connect termination rack for power supply and interface.

II. Interface and power supply protected by two component polyurethane.

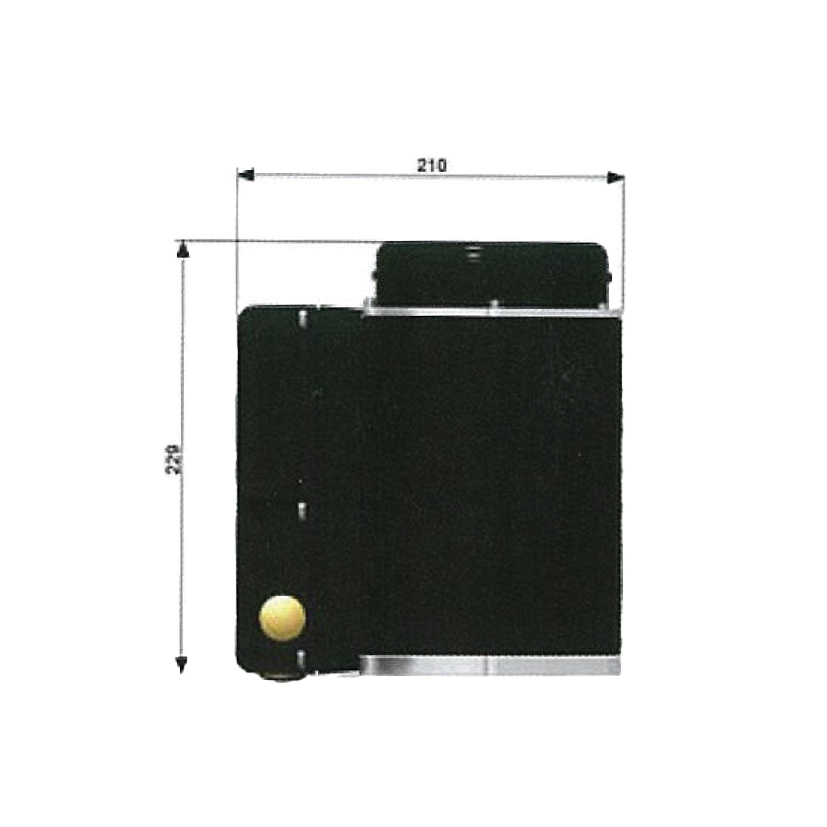

MEASUREMENTS AND PART NO’S FOR ACUTATORS INCLUDED INTERFACE

TYPE	ART. NR.	TORQUE	INTERFACE	FLANGE	A mm	B mm	C mm	WEIGHT kg
QT 250 1.0	5519952	250 Nm	Digital on/off	F05/F07/F10 – SQ 17	229	210	156	12,00
QT 250 1.0		250 Nm	CanOpen	F05/F07/F10 – SQ 17	229	210	156	12,00
QT 250 1.0		250 Nm	Modbus	F05/F07/F10 – SQ 17	229	210	156	12,00
QT 250 1.0		250 Nm	Analog/Analogue 4 – 20mA	F05/F07/F10 – SQ 17	229	210	156	12,00
QT 250 2.0		250 Nm	Digital on/off	F05/F07/F10 – SQ 17	229	210	156	12,00
QT 250 2.1 Ex		250 Nm	Digital Ex on/off	F05/F07/F10 – SQ 17	229	210	156	12,00
QT 250 2.0		250 Nm	CanOpen	F05/F07/F10 – SQ 17	229	210	156	12,00
QT 250 2.1 Ex		250 Nm	CanOpen Ex	F05/F07/F10 – SQ 17	229	210	156	12,00
QT 800 1.0		800 Nm	Digital on/off	F10/F12 – SQ 27	333	238	200	21,00
QT 800 1.0	5519962	800 Nm	CanOpen	F10/F12 – SQ 27	333	238	200	21,00
QT 800 1.0		800 Nm	Modbus	F10/F12 – SQ 27	333	238	200	21,00
QT 800 1.0		800 Nm	Analog/Analogue 4 – 20mA	F10/F12 – SQ 27	333	238	200	21,00
QT 800 2.0		800 Nm	Digital on/off	F10/F12 – SQ 27	333	238	200	21,00
QT 800 2.1 Ex		800 Nm	Digital Ex on/off	F10/F12 – SQ 27	333	238	200	21,00
QT 800 2.0		800 Nm	CanOpen	F10/F12 – SQ 27	333	238	200	21,00
QT 800 2.1 Ex		800 Nm	CanOpen Ex	F10/F12 – SQ 27	333	238	200	21,00
QT 2500 1.0		2500 Nm	Digital on/off	F12/F14 – SQ 36	583	278	247	78,00
QT 2500 1.0	5519972	2500 Nm	CanOpen	F12/F14 – SQ 36	583	278	247	78,00
QT 2500 1.0		2500 Nm	Modbus	F12/F14 – SQ 36	583	278	247	78,00
QT 2500 1.0		2500 Nm	Analog/Analogue 4 – 20mA	F12/F14 – SQ 36	583	278	247	78,00
QT 2500 2.0		2500 Nm	Digital on/off	F12/F14 – SQ 36	583	278	247	78,00
QT 2500 2.1 Ex		2500 Nm	Digital Ex on/off	F12/F14 – SQ 36	583	278	247	78,00
QT 2500 1.0		2500 Nm	CanOpen	F12/F14 – SQ 36	583	278	247	78,00
QT 2500 2.1 Ex		2500 Nm	CanOpen Ex	F12/F14 – SQ 36	583	278	247	78,00
