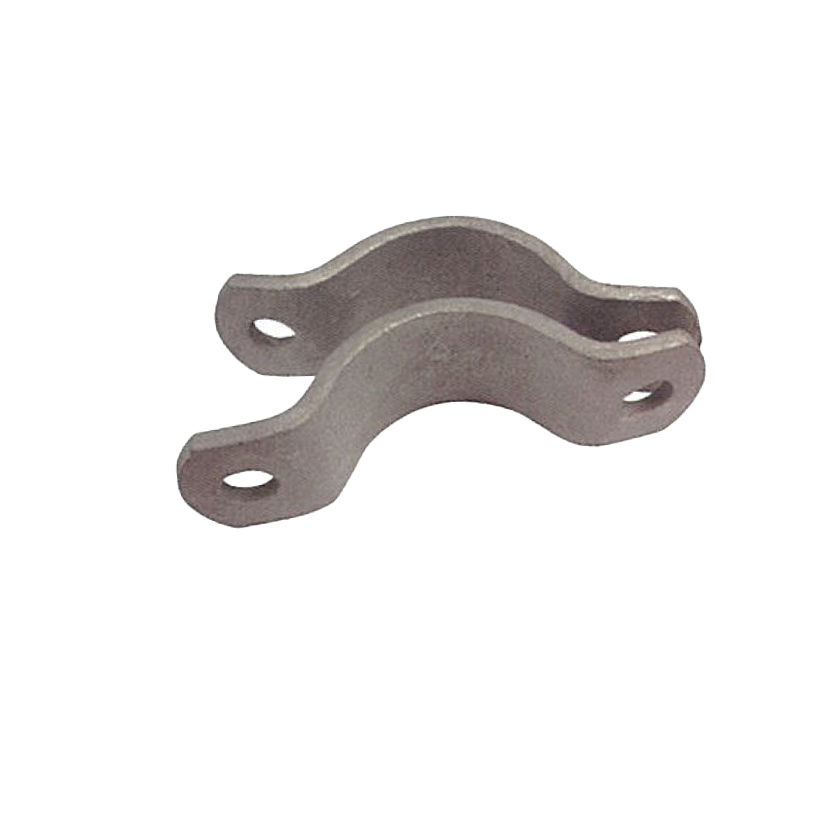

The clips are used for clamping steel pipes, copper pipes and pipes of copper alloys.
When clamping copper pipes and pipes of copper alloys, plastic coated clips shall be used.
Hot-dip galvanized steel
Can also be delivered galvanized and stainless steel
| DN | SIZE RANGE | PIPE DIM. | PART NO. HOT DIP GALVANIZED | WEIGHT KG |
|---|---|---|---|---|
| 15 | 20 - 21,3 - 22,0 | 1 / 2 " | 1710100 | 0,04 |
| 20 | 25,0-26,9 | 3 / 4 " | 1710101 | 0,06 |
| 25 | 33,7-35,0 | 1 " | 1710102 | 0,06 |
| 32 | 42,4 | 11 / 4 " | 1710103 | 0,12 |
| 40 | 48,3 | 11 / 2 " | 1710104 | 0,12 |
| 50 | 60,3 | 2 " | 1710105 | 0,20 |
| 65 | 76,1 | 21 / 2 " | 1710106 | 0,22 |
| 80 | 88,9 | 3 " | 1710107 | 0,26 |
| 100 | 114,3 | 4 " | 1710108 | 0,60 |
| 125 | 139,7-144,0 | 5 " | 1710109 | 0,68 |
| 150 | 168,3-170,0 | 6 " | 1710110 | 0,84 |
| 200 | 219,1-222,0 | 8 " | 1710111 | 1,50 |
| 250 | 273,0-274,0 | 10 " | 1710112 | 1,85 |
| 300 | 323,9-326,0 | 12 " | 1710113 | 3,50 |
| 350 | 355,6 | 14 " | 1710114 | 4,10 |
| 400 | 406,4 | 16 " | 1710115 | 5,50 |
Other dimensions delivered on request
