LYCRO BILGE MANIFOLD

Scope of supply:

Valve manifolds are delivered without bolts & nuts.
Counter flanges and gaskets are optional, but delivered upon specification.
Blind-/endflanges are delivered with O-rings
Bottom flanges are delivered with gaskets.

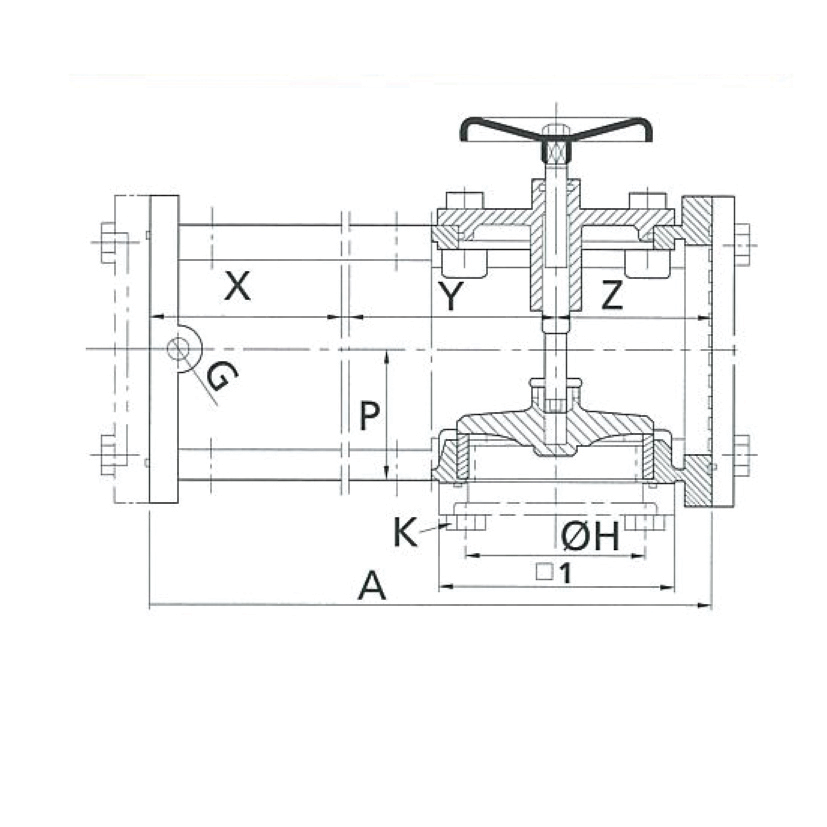

MEASUREMENTS

BOX Ø50 BOX Ø80 BOX Ø100 BOX Ø125 BOX Ø150
B = Ca. 258 B = Ca. 276 B = Ca. 317 B = Ca. 406 B = Ca. 453
C = 80 C = 100 C = 120 C = 150 C = 180
D = 120 D = 150 D = 170 D = 220 D = 250
E = 300 E = 360 E = 402 E = 524 E = 584
F = 17 F = 17 F = 17 F = 22 F = 22
G =M12 G =M16 G =M16 G =M20 G =M20
ØH = 94 ØH = 130 ØH = 154 ØH = 184 ØH = 221
□1 = 90 □1 = 120 □1 = 140 □1 = 170 □1 = 200
K = M12 K = M16 K = M16 K = M20 K = M20
ØM = 65 ØM = 80 ØM = 100 ØM = 130 ØM = 156
ØN = 80 ØN = 100 ØN = 120 ØN = 150 ØN = 180
P105 P125 P140 P184 P215
X80 X95 X108 X117 X135
Y120 Y130 Y150 Y180 Y225
Z110 Z125 Z138 Z172 Z195
S15 S15 S18 S22 S25

MEASUREMENTS

NO OF BOXES 1 2 3 4
No. of cell = T 2 3 4 5 6 7 8 9 10 11 12
Type (Construction) 0002 0003 0022 0023 0033 0223 0233 0333 2233 2333 3333
Length A Ø50 box 310 430 621 741 861 1052 1172 1292 1483 1603 1723
Length A Ø80 box 350 480 701 831 961 1182 1312 1442 1663 1793 1923
Length A Ø100 box 396 546 792 942 1092 1338 1488 1638 1884 2034 2184
Length A Ø125 box 469 649 938 1118 1298 1587 1767 1947 2236 2416 2596
Length A Ø150 box 555 780 1110 1335 1560 1890 2115 2340 2670 2895 3120
Information and technical data are given as guidance only
