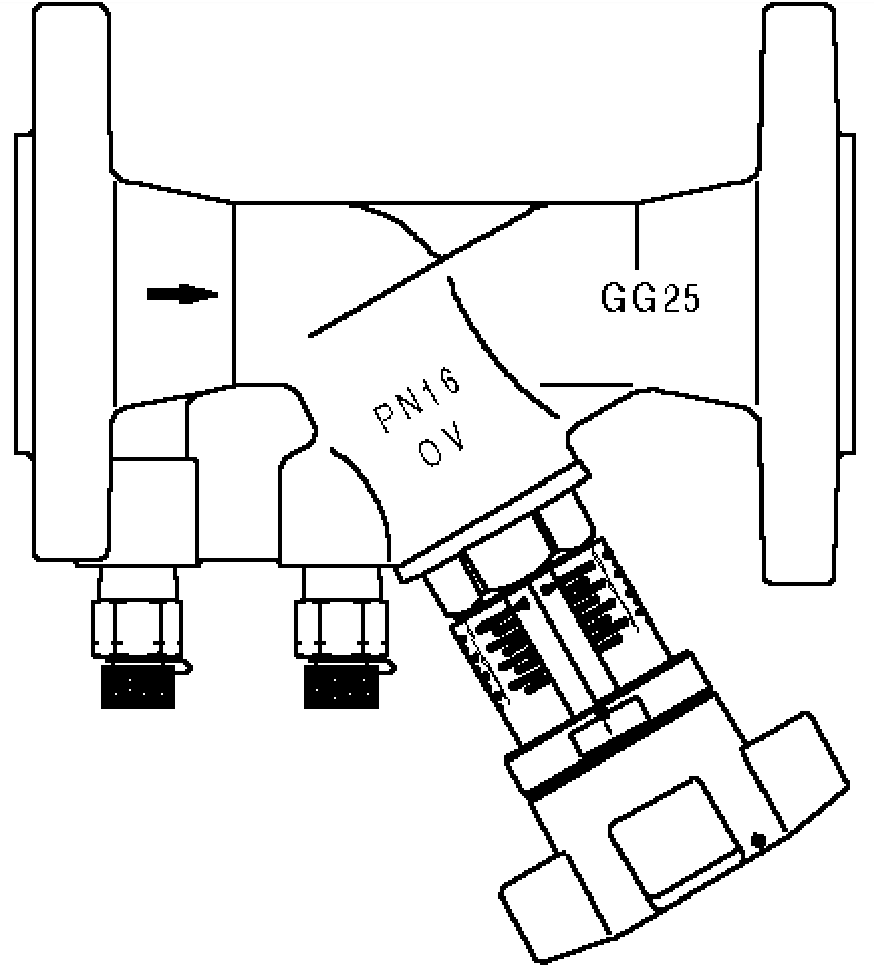

OVENTROP HYDROCONTROL VFC BALANCING VALVE

Typical application: For balancing of various heating, cooling and hot water systems. DNV Type approval certificate for shipsbuilding.

Temp. range:

-10 / +150°C

Max pressure:

16 bar / PN16

PART NAME MATERIAL
Connection Flange
Valve body Cast iron with external corrosion protection 120μ
Bonnet, stem, disc Bronze, Brass resistant to de-zincification
Valve Silicone free as standard version
Seal PTFE
Sealing Double O-ring seal for spindle
DN NRF NR. ART. NR. L mm D mm H mm D mm WEIGHT kg PRESSURE RATING
20 8521075 311062646 150 105 118 70 3 PN 16
25 8521076 311062647 160 115 118 70 3,44 PN 16
32 8521077 311062648 180 140 136 70 5,65 PN 16
40 8521078 311062649 200 150 136 70 6,42 PN 16
50 8521079 311062650 230 165 145 70 8,63 PN 16
65 8521081 311062651 290 185 188 110 13,72 PN 16
80 8521082 311062652 310 200 203 110 17,99 PN 16
100 8521083 311062653 350 220 240 160 29,16 PN 16
125 8521084 311062654 400 250 283 160 41,11 PN 16
150 8521085 311062655 480 285 285 160 51,79 PN 16
200 8521086 311062656 600 340 467 300 125 PN 16
250 8521087 311062657 730 405 480 300 167 PN 16
300 8521088 311062658 850 460 515 300 238 PN 16
350 8521089 311062659 980 520 560 300 350 PN 16
400 8521091 311062660 1100 580 655 300 482 PN 16
Information and technical data are given as guidance only
