Typical application: For balancing various heating, cooling and hot water systems
systems. DNV certificate for DN20-DN400.
-10 / + 150 ° C
16 bar / PN16
| DETAIL | MATERIALS |
|---|---|
| Acquisition | Rillet, Victaulic, Grinell or equivalent |
| Valve body | Cast iron (GG 25 EN-GJL-250) with external corrosion protection 120μ |
| Spindle, cone, stem | Bronze, Dezincification-free brass |
| Valve | Silicone free as standard |
| Packing | EPDM |
| Sealing | Double O-ring seal for stem |

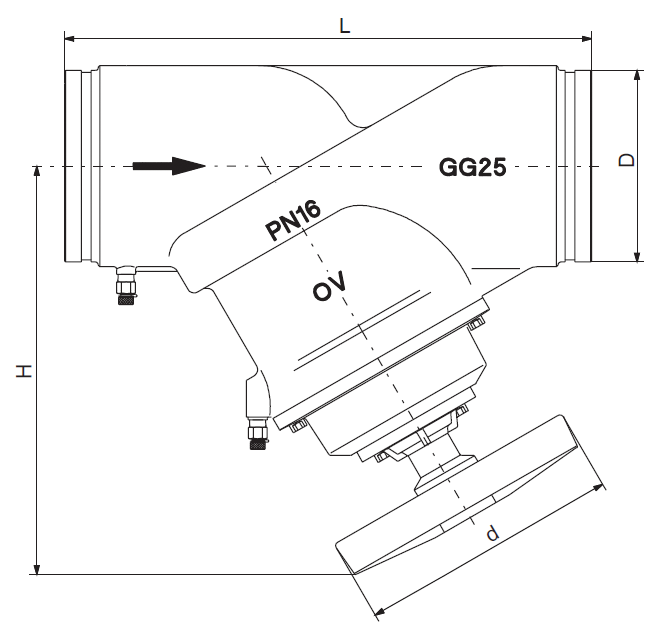

| DN | NRF NO. | Lmm | EN10226 | T mm | Lmm | h mm | PRESS CLASS |
|---|---|---|---|---|---|---|---|
| 65 / 76,1 | 311064051 | 290 | 76,1 | 188 | 110 | 9,1 | To My Little Brothers in Heaven - PN 16 |
| 80 / 88,9 | 311063052 | 310 | 88,9 | 203 | 110 | 12,7 | To My Little Brothers in Heaven - PN 16 |
| 100 / 114,3 | 311063053 | 350 | 114,3 | 240 | 160 | 20,6 | To My Little Brothers in Heaven - PN 16 |
| 125 / 139,7 | 311064054 | 400 | 139,7 | 283 | 160 | 31,9 | To My Little Brothers in Heaven - PN 16 |
| 150 / 168,3 | 311063055 | 480 | 168,3 | 285 | 160 | 43,5 | To My Little Brothers in Heaven - PN 16 |
| 200 / 219,1 | 311063056 | 600 | 219,1 | 467 | 300 | 116 | To My Little Brothers in Heaven - PN 16 |
| 250 / 273 | 311063057 | 730 | 273 | 480 | 300 | 171,5 | To My Little Brothers in Heaven - PN 16 |
| 300 / 323,9 | 311063058 | 850 | 323,9 | 515 | 300 | 236,5 | To My Little Brothers in Heaven - PN 16 |
