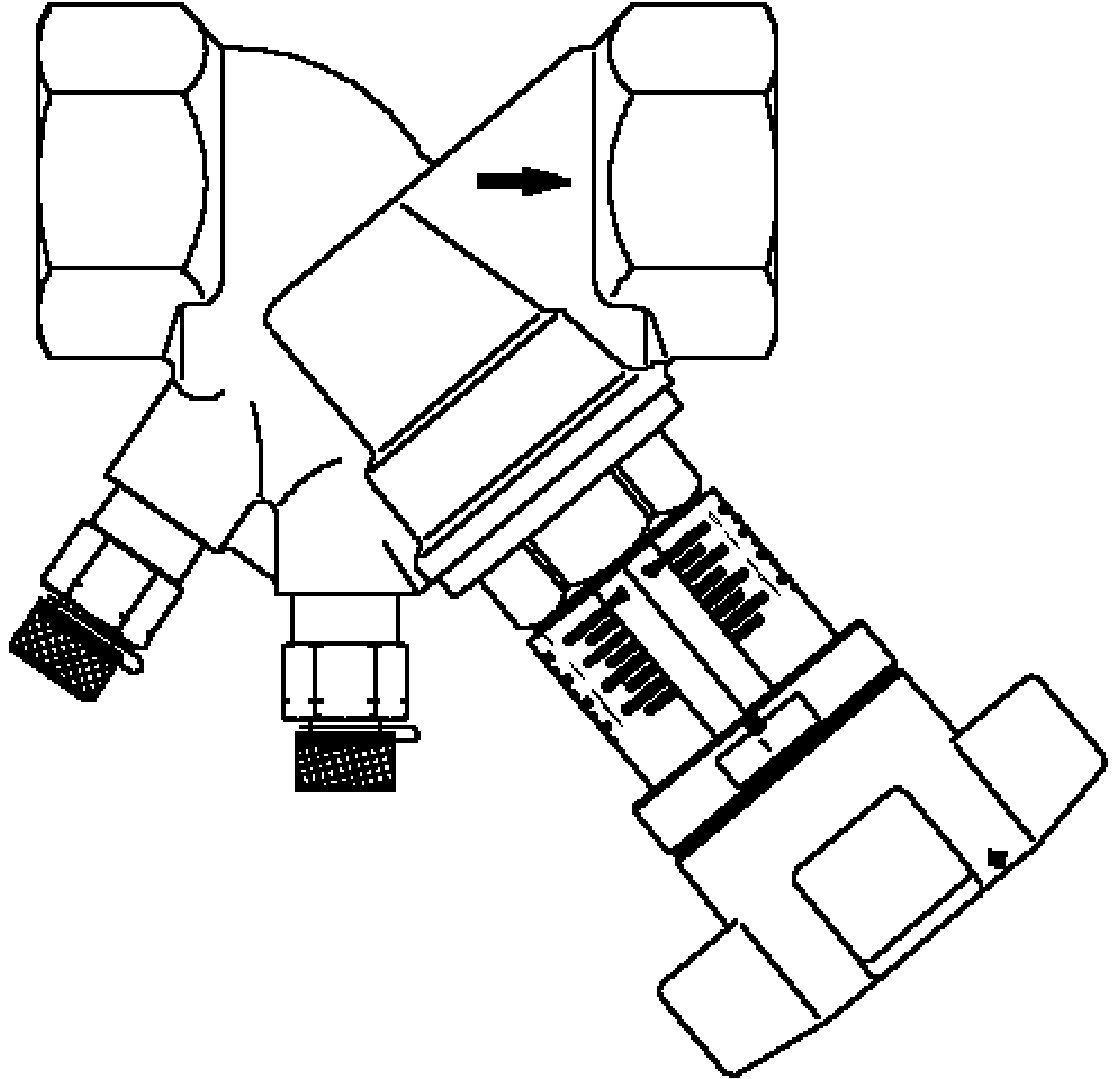

Typical application: For balancing various heating, cooling and hot water systems. DNV certificate for DN20-DN400.
-20 / + 150 ° C
25 bar / PN25
| DETAIL | MATERIALS |
|---|---|
| Acquisition | Inv. Threads |
| Valve body | Bronze, Grade 5 |
| spindle | Dezincification-free brass |
| Cone | Dezincification-free brass |
| Valve | Silicone-free as standard |
| Packing | EPDM |
| Sealing | Double O-ring seal for spindle |
| DN | NRF NO. | ITEM NO. | Lmm | D mm | h mm | D mm | WEIGHT kg | PRESS CLASS |
|---|---|---|---|---|---|---|---|---|
| 10 | 8521067 | 311060203 | Rp 3/8″ | 10,1 | 73 | 114 | 0,73 | To My Little Brothers in Heaven - PN 25 |
| 15 | 8521068 | 311060204 | Rp 1/2″ | 13,2 | 80 | 114 | 0,73 | To My Little Brothers in Heaven - PN 25 |
| 20 | 8521069 | 311060206 | Rp 3/4″ | 14,5 | 84 | 116 | 0,78 | To My Little Brothers in Heaven - PN 25 |
| 25 | 8521071 | 311060208 | Rp 1 ″ | 16,8 | 97,5 | 119 | 1,09 | To My Little Brothers in Heaven - PN 25 |
| 32 | 8521072 | 311060210 | Rp 1 1/4″ | 19,1 | 110 | 136 | 1,46 | To My Little Brothers in Heaven - PN 25 |
| 40 | 8521073 | 311060212 | Rp 1 1/2″ | 19,1 | 120 | 138 | 1,81 | To My Little Brothers in Heaven - PN 25 |
| 50 | 8521074 | 311060216 | Rp 2 ″ | 25,7 | 150 | 148 | 2,74 | To My Little Brothers in Heaven - PN 25 |
