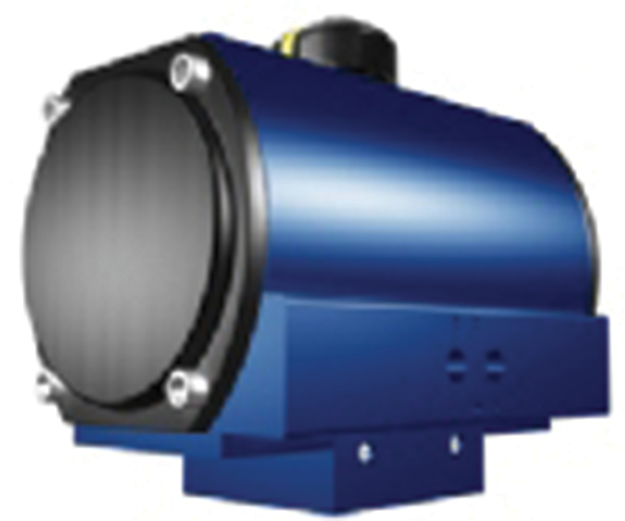

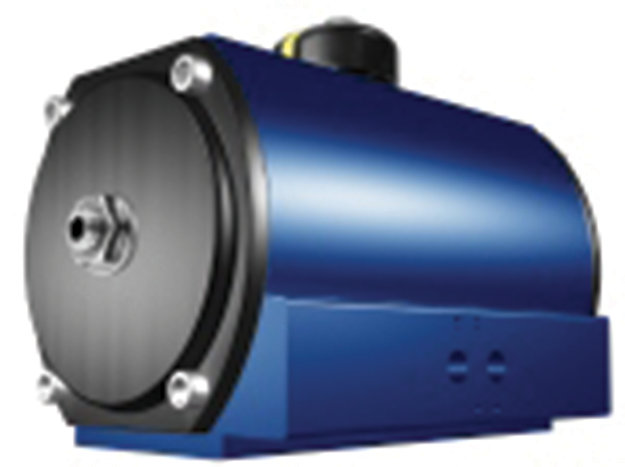

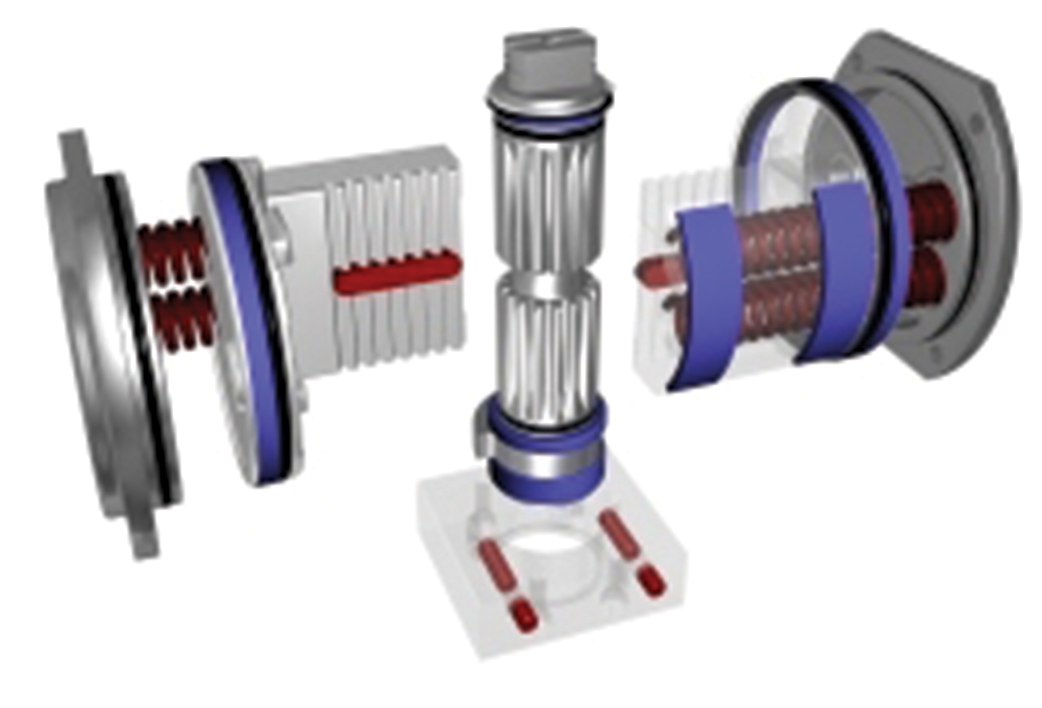

PNEUMATIC ACTUATOR
Wire Matic

Pneumatic actuator.
Body in anodized aluminium.

Options:

Double- and single acting
On/Off or throtling
With manual override gear

TYPE ISO A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) J (mm) K (mm) L (mm) M (mm) N O (mm) P (mm) Q (mm) R (mm) S (mm) T (mm) U (mm) V WEIGHT (kg)
WM2 F03 114,5 73 75,5 43,5 41 – 20,5 2 25 9 10 36 M5 8 11,5 16 4,5 25 73 32 M5 1,00
WM4 F05 133 90,5 87,5 47,5 41 – 20,5 2 30 11 12 42 M5 8 11,5 20 4,5 31 73 32 M5 1,70
WM8 F07 162 109 105 57 42 7,5 28,5 3 35 14 16 50 M6 10 11,5 20 5 35 73 32 M5 2,80
WM12 F05 194 118,5 121 67 43 8 29,5 3 35 14 16 50 M6 10 11,5 20 5,5 46 107 49 M5 4,00
WM12 F07 194 118,5 121 67 43 8 29,5 3 55 17 19 70 M8 10 11,5 20 5,5 46 107 49 M6 4,00
WM20 F07 218 140,5 136,5 72 43 8 29,5 3 55 17 19 70 M8 13 19 32 6,5 50 107 49 M6 6,30
WM35 F07 266 166,5 156 78 43 8,5 30 3 55 17 19 70 M8 13 19 32 7 61 107 49 M6 12,00
WM35 F10 266 166,5 156 78 43 8,5 30 3 70 22 24 102 M10 16 19 32 7 61 161 73 M6 12,00
WM55 F12 312 207,5 191 95,5 43 20,5 42 3 85 27 29 125 M12 20 20,4 40 7,5 61 161 73 M8 21,00
WM70 F12 340 207,5 191 95,5 43 20,5 42 3 86 27 29 125 M12 20 25,4 40 7 72 161 73 M8 22,00
WM100 F14 361 250 227 113,5 43 39,5 61 4 100 36 38 140 M16 25 25,4 40 7 78 213 102 M8 28,00
WM150 F14 390 300 280 140 43 56,5 78 4 150 36 38 140 M16 25 25,4 40 7 78 244 117 M12 36,00
DOUBLE ACTING PNEUMATIC ACTUATOR (DA)
WM 2DA 4DA 8DA 12DA 20DA 35DA 55DA 70DA 100DA 160DA 250DA 400DA
ART. NR. 130001 130002 130003 130004 130005 130006 130007 130008 130009 130010 130011 130012
TORQUE 6 BAR 20 41 90 122 202 374 597 824 1122 1655 2648 4803
COMPLETE DA ACTUATOR W/ SOLENOID VALVE AND LIMIT SWITCH
WM 2DA 4DA 8DA 12DA 20DA 35DA 55DA 70DA 100DA 160DA 250DA 400DA
ART. NR. 130001-C 130002-C 130003-C 130004-C 130005-C 130006-C 130007-C 130008-C 130009-C 130010-C
TORQUE 6 BAR 20 41 90 122 202 374 597 824 1122 1655
SINGLE ACTING PNEUMATIC ACTUATOR WITH SPRING RETURN (SR)
WM 4SR 8SR 12SR 20SR 35SR 55SR 70SR 100SR 150SR 250SR 400SR
ART. NR. 130030SR 130031SR 130032SR 130033SR 130034SR 130036 130038 130039 130040 130041
TORQUE 6 BAR 23 31 43 71 132 211 292 398 586 1212
COMPLETE SR ACTUATOR WITH SOLENOID VALVE AND LIMIT SWITCH
WM 4SR-C 8SR-C 12SR-C 20SR-C 35SR-C 55SR-C 70SR-C 100SR-C 150SR-C 250SR-C 400SR-C
ART. NR. 130031SR-C 130032SR-C 130004SR-C 130033SR-C 130034SR-C 130036SR-C 130038SR-C 130039SR-C 130040SR-C 130041SR-C
TORQUE 6 BAR 23 31 43 71 132 211 292 398 586 1212
Information and technical data are given as guidance only
