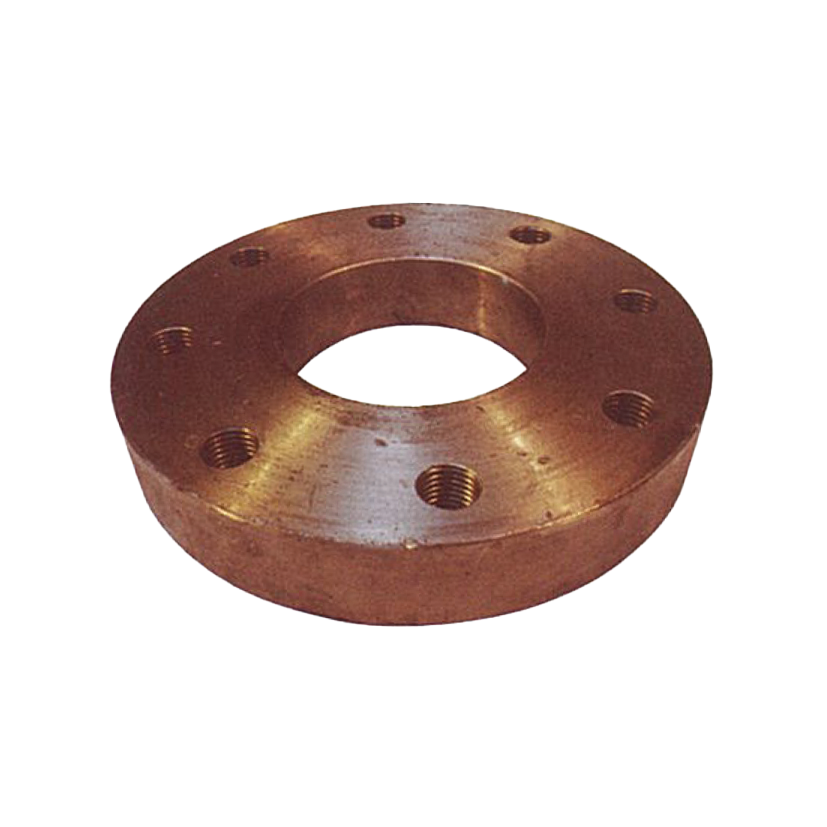

SET ON FLANGE IN STEEL, PN 10 & 16
Type UST 2089

Material S235JR RST 37.2

PN 10 – UST 2089
DN D mm D1 mm ØK mm S mm NO. OF BOLTS BOLT D3 mm WEIGHT kg ART. NR.
200 340 223 295 38 12 M20 215 12,00 1256179
250 405 277 355 44 12 M24 265 20,20 1256189
300 460 328 410 44 12 M24 315 24,20 1256194
PN 16 – UST 2089
DN D mm D1 mm ØK mm S mm NO. OF BOLTS BOLT D3 mm WEIGHT kg ART. NR.
20 105 31 75 28 4 M12 20 1,53 1256224
25 115 32 85 28 4 M12 25 1,80 1256229
32 140 46 100 33 4 M16 32 3,17 1256234
40 150 52 110 33 4 M16 40 3,61 1256239
50 165 64 125 33 4 M16 52 4,24 1256244
65 185 80 145 33 4 M16 68 5,12 1256249
80 200 94 160 33 8 M16 82 5,62 1256254
100 220 118 180 33 8 M16 105 6,09 1256259
125 250 141 210 33 8 M16 132 7,45 1235264
150 285 172 240 38 8 M20 160 10,50 1256269
Information and technical data are given as guidance only
Contact us for a quote
