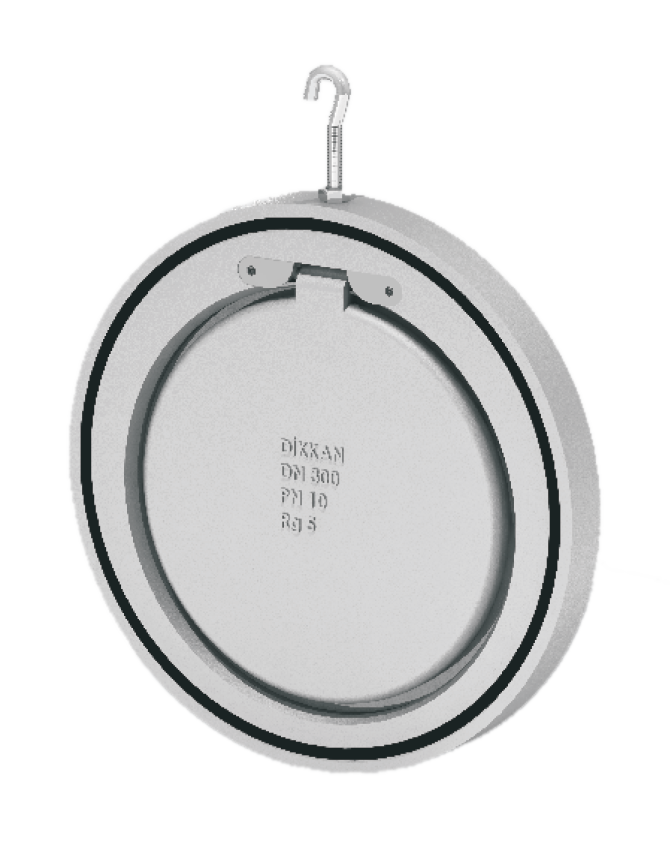

Valve for installation between flanges.
Suitable for horizontal & vertical installation.
Available with O-ring in EPDM & PTFE and with spring.
| PART | MATERIAL | |
|---|---|---|
| BRONZE VERSION | STAINLESS STEEL VERSION | |
| Bodysuit | Rg5 (CuSn5ZnPb5-C) | AISI 316 |
| Disc | Rg5 (CuSn5ZnPb5-C) | AISI 316 |
| Seals | NBR | NBR |
| DN | BRONZE VERSION ART. NO. | AISI 316 VERSION ART. NO. | Ø mm | ØC mm | Lmm | WEIGHT kg | PRESSURE RATING TEMP 100°C |
|---|---|---|---|---|---|---|---|
| 40 | 041107 | 041077 | 94 | 22 | 16 | 0,8 | To My Little Brothers in Heaven - PN 16 |
| 50 | 041108 | 041078 | 109 | 30 | 16 | 1,1 | To My Little Brothers in Heaven - PN 16 |
| 65 | 041109 | 041079 | 129 | 37 | 16 | 1,6 | To My Little Brothers in Heaven - PN 16 |
| 80 | 041110 | 041080 | 144 | 48 | 16 | 2 | To My Little Brothers in Heaven - PN 16 |
| 100 | 041111 | 041081 | 164 | 70 | 16 | 2,4 | To My Little Brothers in Heaven - PN 16 |
| 125 | 041112 | 041082 | 194 | 95 | 18 | 3,3 | To My Little Brothers in Heaven - PN 16 |
| 150 | 041113 | 041083 | 220 | 121 | 19 | 4,5 | To My Little Brothers in Heaven - PN 16 |
| 200 | 041114 | 041084 | 275 | 155 | 29 | 10 | To My Little Brothers in Heaven - PN 10 |
| 250 | 041115 | 041085 | 330 | 196 | 29 | 16 | To My Little Brothers in Heaven - PN 10 |
| 300 | 041116 | 041086 | 380 | 230 | 38 | 28 | To My Little Brothers in Heaven - PN 10 |
| 350 | 041117 | 440 | 250 | 41 | 35 | To My Little Brothers in Heaven - PN 10 | |
| 400 | 041118 | 491 | 303 | 51 | 60 | To My Little Brothers in Heaven - PN 10 | |
| 450 | 041119 | 541 | 358 | 51 | 68 | To My Little Brothers in Heaven - PN 10 | |
| 500 | 041120 | 596 | 398 | 61 | 80 | To My Little Brothers in Heaven - PN 10 | |
| 600 | 041221 | 698 | 480 | 71 | 120 | To My Little Brothers in Heaven - PN 10 |
