TACO SETTER BYPASS 100 BALANCING VALVE

Typical application: Balancing of various heating, cooling and hot water systems.

Temperature range:

0 to +100°C

Max operating pressure:

10 bar / PN10

DETAIL MATERIALS
Acquisition Inv. Threads
Valve body brass
Innside Stainless steel, brass, plastic
Sight glass Heat and impact resistant plastic
Packing EPDM

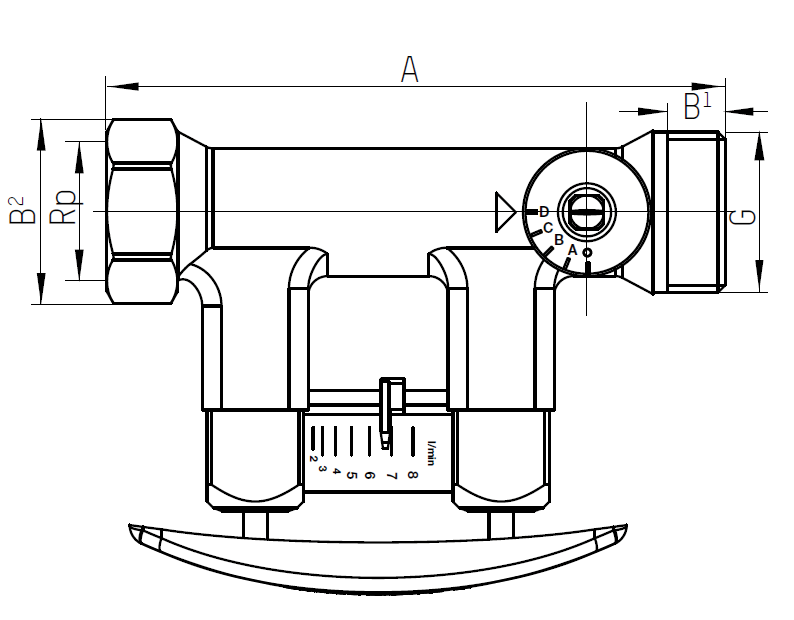

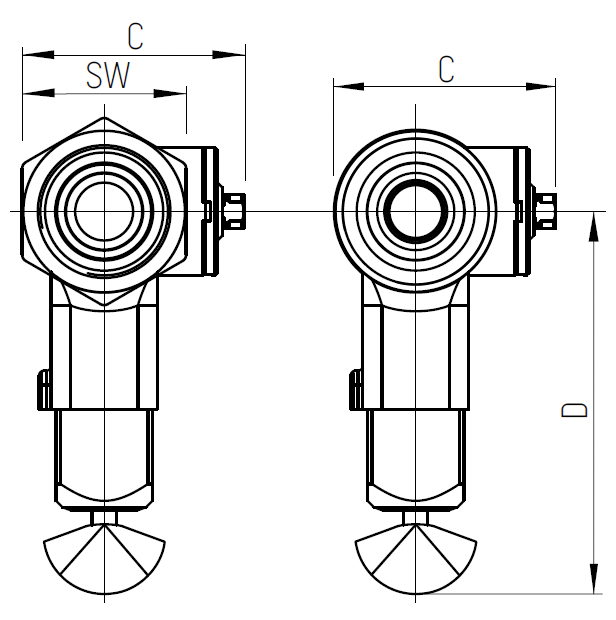

DN NRF NO. ITEM NO. MEASUREMENT RANGE L/MIN. RP A mm B1 mm C mm D mm SW mm WEIGHT kg PRESS CLASS
15 8521043 3322232262000 2-8 Rp 1/2″ 142 39 46 79 34 0,82 PN 10
20 3322232361000 2-8 Rp 3/4″ 129 39 46 79 34 0,7 PN 10
20 8521046 3322232360000 4-15 Rp 3/4″ 129 39 46 79 34 0,7 PN 10
20 8521049 3322232362000 8-30 Rp 3/4″ 129 39 46 79 34 0,7 PN 10
25 8521053 3322232460000 6-20 Rp 1 ″ 152 47 58 82 41 0,94 PN 10
25 8521056 3322232461000 10-40 Rp 1 ″ 152 47 58 82 41 0,94 PN 10
32 8521059 3322232561000 20-70 Rp 1 1/4″ 161 56 65 84 49 1,21 PN 10
40 8521063 3322232661000 30-120 Rp 1 1/2″ 173 64 79 90 59 1,65 PN 10
50 8521066 3322232861000 50-200 Rp 2 ″ 197 76 91 97 70 2,25 PN 10
Disclaimer regarding printing errors and product changes
