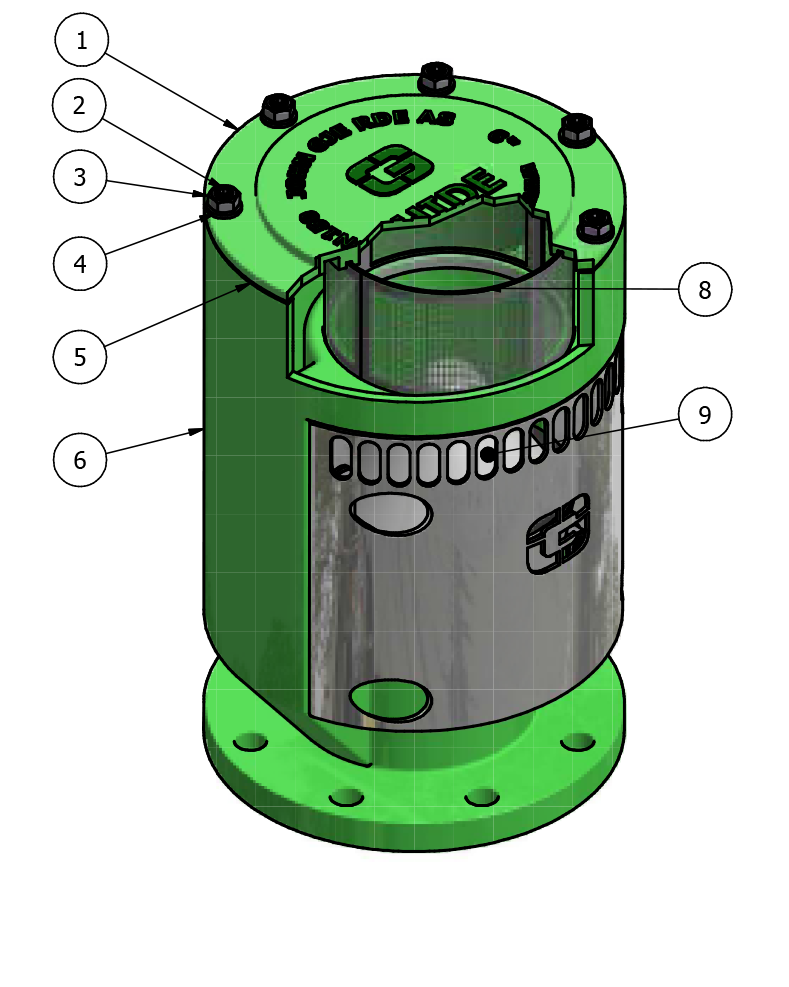

| NR | PART NAME | MATERIAL |
|---|---|---|
| 1 | Top | Aluminum |
| 2 | Bolt | Stainless Steel |
| 3 | Washer | Stainless Steel |
| 4 | Gasket | Rubber |
| 5 | Body | Aluminum |
| 6 | Cover | Aluminum |
| 7 | Flamescreen* | Stainless Steel |
| 8 | Float disc | Plastic PVC/ABS |
*Optional

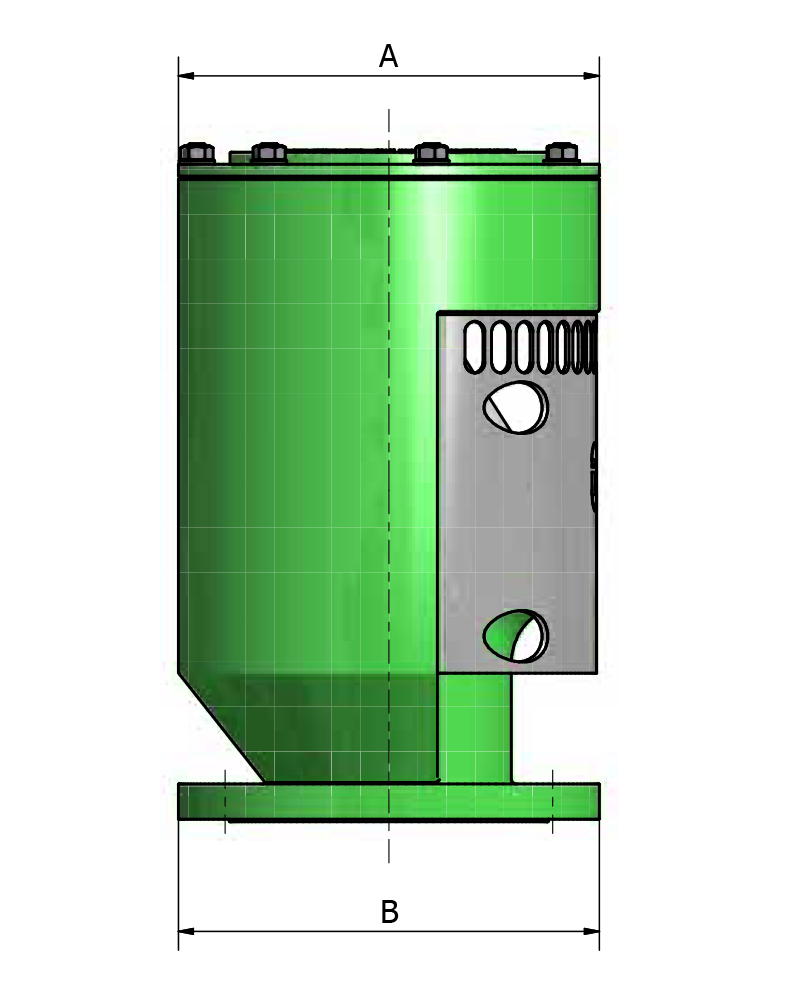

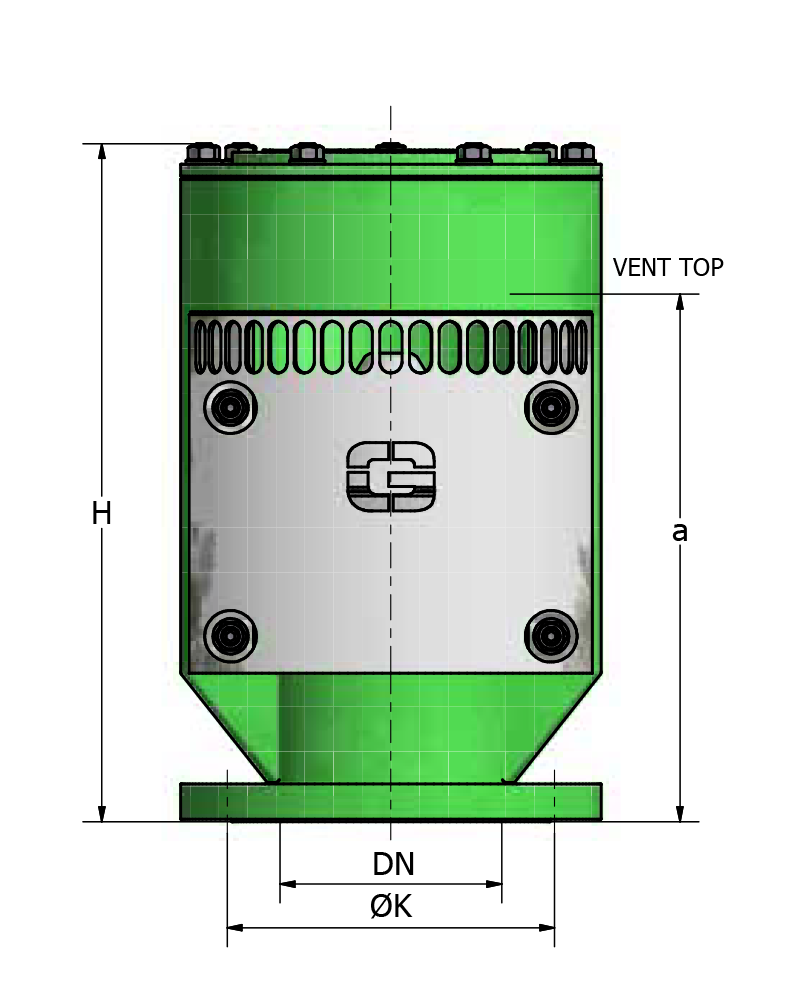

| INCH | DN mm | H mm | A mm | A mm | B mm | ØK | WEIGHT kg |
|---|---|---|---|---|---|---|---|
| 1 1/2 | 40 | 175 | 131 | 120 | 150 | 110 | 2 kg |
| 2 | 50 | 228 | 180 | 140 | 165 | 125 | 3 kg |
| 2 1/2 | 65 | 250 | 190 | 160 | 185 | 145 | 3,5 kg |
| 3 | 80 | 274 | 212 | 180 | 200 | 160 | 4 kg |
| 4 | 100 | 316 | 239 | 210 | 220 | 180 | 6 kg |
| 5 | 125 | 386 | 292 | 250 | 250 | 210 | 11 kg |
| 6 | 150 | 460 | 358 | 285 | 285 | 240 | 18 kg |
| 8 | 200 | 533 | 400 | 360 | 343 | 295 | 30 kg |
| 10 | 250 | 680 | 510 | 430 | 406 | 355 | 44 kg |
| 12 | 300 | 800 | 585 | 520 | 460 | 400 | 77 kg |
