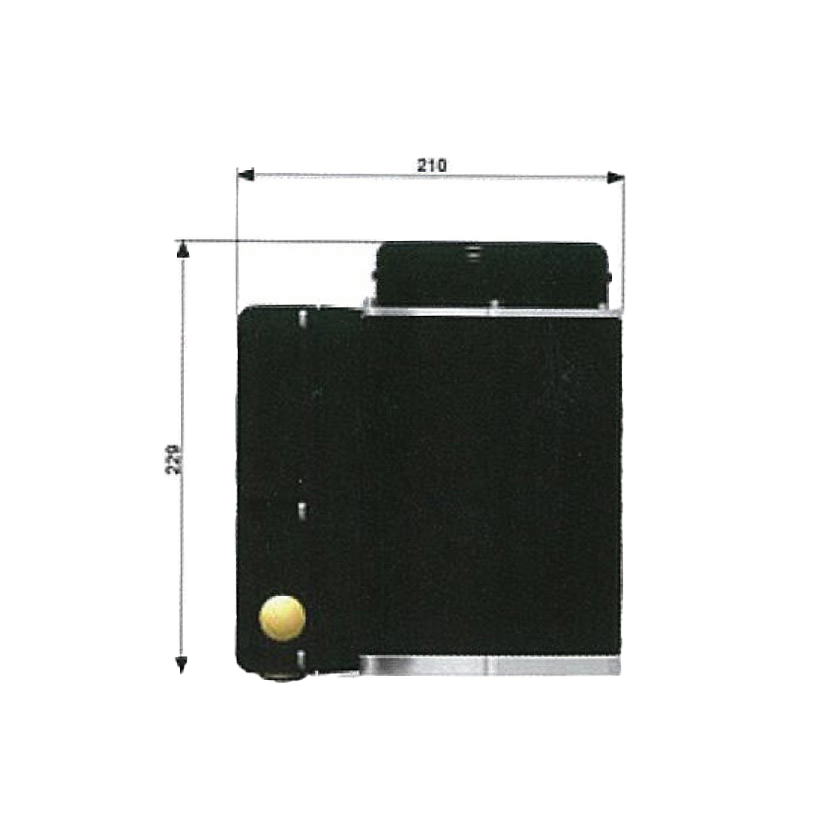

| TYPE | ART. NR. | MOMENT/ TORQUE | GRENSESNITT/ INTERFACE | FLENS/ FLANGE | A mm |
B mm |
C mm |
VEKT/ WEIGHT kg |
|---|---|---|---|---|---|---|---|---|
| QT 250 1.0 | 5519952 | 250 Nm | Digital on/off | F05/F07/F10 – SQ 17 | 229 | 210 | 156 | 12,00 |
| QT 250 1.0 | 250 Nm | CanOpen | F05/F07/F10 – SQ 17 | 229 | 210 | 156 | 12,00 | |
| QT 250 1.0 | 250 Nm | Modbus | F05/F07/F10 – SQ 17 | 229 | 210 | 156 | 12,00 | |
| QT 250 1.0 | 250 Nm | Analog/Analogue 4 – 20mA | F05/F07/F10 – SQ 17 | 229 | 210 | 156 | 12,00 | |
| QT 250 2.0 | 250 Nm | Digital on/off | F05/F07/F10 – SQ 17 | 229 | 210 | 156 | 12,00 | |
| QT 250 2.1 Ex | 250 Nm | Digital Ex on/off | F05/F07/F10 – SQ 17 | 229 | 210 | 156 | 12,00 | |
| QT 250 2.0 | 250 Nm | CanOpen | F05/F07/F10 – SQ 17 | 229 | 210 | 156 | 12,00 | |
| QT 250 2.1 Ex | 250 Nm | CanOpen Ex | F05/F07/F10 – SQ 17 | 229 | 210 | 156 | 12,00 | |
| QT 800 1.0 | 800 Nm | Digital on/off | F10/F12 – SQ 27 | 333 | 238 | 200 | 21,00 | |
| QT 800 1.0 | 5519962 | 800 Nm | CanOpen | F10/F12 – SQ 27 | 333 | 238 | 200 | 21,00 |
| QT 800 1.0 | 800 Nm | Modbus | F10/F12 – SQ 27 | 333 | 238 | 200 | 21,00 | |
| QT 800 1.0 | 800 Nm | Analog/Analogue 4 – 20mA | F10/F12 – SQ 27 | 333 | 238 | 200 | 21,00 | |
| QT 800 2.0 | 800 Nm | Digital on/off | F10/F12 – SQ 27 | 333 | 238 | 200 | 21,00 | |
| QT 800 2.1 Ex | 800 Nm | Digital Ex on/off | F10/F12 – SQ 27 | 333 | 238 | 200 | 21,00 | |
| QT 800 2.0 | 800 Nm | CanOpen | F10/F12 – SQ 27 | 333 | 238 | 200 | 21,00 | |
| QT 800 2.1 Ex | 800 Nm | CanOpen Ex | F10/F12 – SQ 27 | 333 | 238 | 200 | 21,00 | |
| QT 2500 1.0 | 2500 Nm | Digital on/off | F12/F14 – SQ 36 | 583 | 278 | 247 | 78,00 | |
| QT 2500 1.0 | 5519972 | 2500 Nm | CanOpen | F12/F14 – SQ 36 | 583 | 278 | 247 | 78,00 |
| QT 2500 1.0 | 2500 Nm | Modbus | F12/F14 – SQ 36 | 583 | 278 | 247 | 78,00 | |
| QT 2500 1.0 | 2500 Nm | Analog/Analogue 4 – 20mA | F12/F14 – SQ 36 | 583 | 278 | 247 | 78,00 | |
| QT 2500 2.0 | 2500 Nm | Digital on/off | F12/F14 – SQ 36 | 583 | 278 | 247 | 78,00 | |
| QT 2500 2.1 Ex | 2500 Nm | Digital Ex on/off | F12/F14 – SQ 36 | 583 | 278 | 247 | 78,00 | |
| QT 2500 1.0 | 2500 Nm | CanOpen | F12/F14 – SQ 36 | 583 | 278 | 247 | 78,00 | |
| QT 2500 2.1 Ex | 2500 Nm | CanOpen Ex | F12/F14 – SQ 36 | 583 | 278 | 247 | 78,00 |
