HYDRAULIC AND ELECTRO HYDRAULIC VALVE ACTUATORS

TYPE’s & SIZE’s IN THE BELOW TABLES. Can be adapted to most types of valves

TYPICAL USAGE
– Control of valves in harsh environment
– Control of valves with special operation speed
– Control of valves with special requirements for accuracy
– ESD & PSD Valves

Approved by most ship classifications authorities. Highest accuracy

SYSTEMS
Systems are designed to meet the different operational requirements

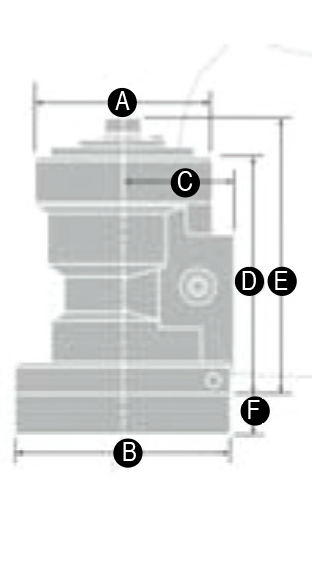

DOUBLE ACTING ROTATING TYPE BAC
TYPE TORQUE AT
135 BAR. *
NM		 TOTAL DRY WEIGHT INCL. MOUNTING SET. kg OIL
DISPLACEMENT
AT FULL STROKE.
LITRES		 DIMENSIONS SIDE
VIEW mm		 DIMENSIONS FRONT VIEW mm N P
ØA ØB C D E F G H J K L M THREAD DEPTH
mm		 THREAD DEPTH
mm
BAC 125 125 5.3 0.026 77 96 53 110 129 20.5 52 35 41 22 14.5 58 G1/4 13 M8 12
BAC 250 250 6.3 0.050 95 118 60 130.5 151.5 23 52 35 41 22 16.5 59 G1/4 13 M8 12
BAC 500 500 13.0 0.102 120 132 73 153 176 23 52 35 41 22 20 62.5 G1/4 13 M8 12
BAC 1000 1000 19.9 0.209 135 160 85 157.5 201 28 52 35 41 22 23.5 66 G1/4 13 M8 12
BAC 2000 2000 33.1 0.400 165 192 97 212 234 37 52 35 41 22 25.5 68 G1/4 13 M8 12
BAC 4000 4000 68.9 0.600 215 300 125 255 279 40 52 35 41 22 31.5 74 G1/4 13 M8 12
BAC 8000 8000 106.0 1.600 252 314 157 319 336 44 52 35 41 22 47.0 89.5 G1/4 13 M8 12
BAC 16000 16000 176.0 3.100 300 350 180 390 410 60 52 35 41 22 61.5 104 G1/4 13 M8 12

* Higher torques on request

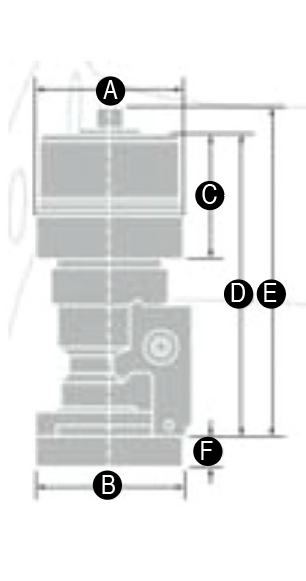

SINGLE ACTING ROTATING TYPE BAC
TYPE BREAK – AWAY
OPENING
TORQUE
AT 135 BAR. NM		 END CLOS-
ING
TORQUE
AT 135 BAR. NM		 TOTAL DRY
WEIGHT
INCL.
MOUNTING
SET. kg		 OIL DISPLACE-
MENT
AT FULL
STROKE.
LITRES		 DIMENSIONS SIDE
VIEW, MM		 DIMENSIONS FRONT
VIEW, MM		 N P
ØA ØB C D E F G H J K L M THREAD DEPTH
mm		 THREAD DEPTH
mm
BACF 125 38 30 6.6 0.026 96 96 12.5 196 215 20.5 52 35 41 22 14.5 58 G1/4 13 M8 12
BACF 250 *50 65 13.6 0.050 107.5 116 106 243 256 23 52 35 41 22 16.5 59 G1/4 13 M8 12
BACF 500 301 140 22.5 0.102 134.5 132 131 291 306 23 52 35 41 22 20.0 62.5 G1/4 13 M8 12
BACF 1000 648 320 39.1 0.209 160 160 156 345 360 26 52 35 41 22 23.5 66 G1/4 13 M8 12
BACF 2000 *207 605 66.7 0.400 195 192 192 413 426 37 52 35 41 22 25.5 68 G1/4 13 M8 12
BACF 4000 2700 1350 151.8 0.800 253 300 269.5 534 550 40 52 35 41 22 31.5 74 G1/4 13 M8 12
BACF 6000 4800 2400 290.0 1.600 310 314 400 696 716 44 52 35 41 22 47.0 68.5 G1/4 13 M8 12
BACF 16000 9600 4800 487.0 3.100 470 350 572 926 947 60 52 35 41 22 61.5 104.0 G1/4 13 M8

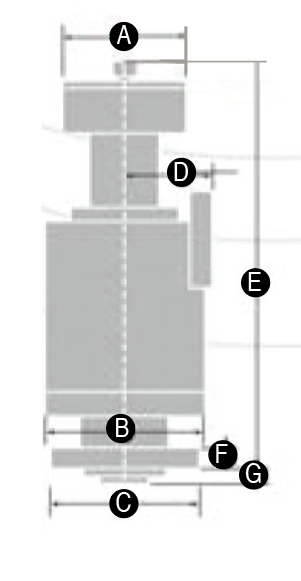

DOUBLE ACTING PISTON ACTUATOR KC
TYPE CLOSING THRUST AT 135 BAR. N STROKE mm TOTAL DRY WEIGHT. kg OIL DISPLACEMENT AT FULL STROKE. LITRES
KC 12 20900 16.0 8 0.026
KC 22 20900 25.0 8 0.041
KC 32 57000 37.5 18 0.168
KC 42 57000 50.0 18 0.224
KC 52 57000 62.5 18 0.260
KC 62 88300 100.0 45 0.592
KC 72 143900 125.0 60 1.414
KC 92 277800 150.0 150 3.240



DIMENSIONS SIDE VIEW mm DIMENSIONS FRONT VIEW mm N P
ØA ØB C D E F G H J K L M THREAD DEPTH mm THREAD DEPTH mm
96 92 76 52 229 11 12 64 35 49 9.5 105.5 G3/8 13 M8 15
96 92 76 52 229 11 12 64 35 49 9.5 105.5 G3/8 13 M8 15
96 126 118 71 327 18 14 64 35 49 9.5 166.5 G3/8 13 M8 15
96 126 118 71 327 18 14 64 35 49 9.5 166.5 G3/8 13 M8 15
96 126 118 71 327 18 14 64 35 49 9.5 166.5 G3/8 13 M8 15
96 152 143 82 418 20 15 64 35 49 9.5 211.5 G3/8 13 M8 15
96 192 168 102 492 22 17 64 35 49 9.5 255.5 G3/8 13 M8 15
96 260 235 122 700 30 24 64 35 49 9.5 311.0 G3/8 13 M8 15

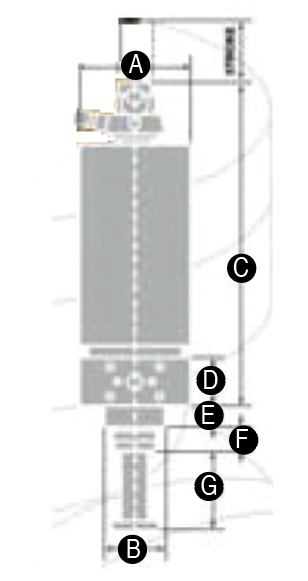

SINGLE ACTING PISTON ACTUATOR KFR
TYPE END CLOSING THRUST. * N STROKE mm TOTAL DRY WEIGHT. kg OIL DISPLACEMENT AT FULL STROKE. LITRES DIMENSIONS mm
ØA ØB C D E F G
KFR 1.0 4250 16.25 6.3 0.047 75 59 219 45 18 9 33.25
KFR 1.0 P* 4250 16.25 7.2 0.047 75 59 244 45 18 9 33.25
KFR 1.1 4450 25.0 7.0 0.070 75 59 244 45 18 9 42.0
KFR 1.1.0 8350 16.25 7.2 0.047 75 59 244 45 18 9 33.25
KFR 1.2 6300 37.5 8.6 0.105 75 59 295 45 18 19.5 65.0
KFR 1.2.1 8750 25.0 9.0 0.070 75 59 295 45 18 9 42.0
KFR 2.2 8660 37.5 9.0 0.201 100 59 299.5 45 18 19.5 65.0
KFR 3.3 13250 50.0 23.0 0.393 115 59 339.5 45 24 38 118.0
KFR 3.3.2 21500 37.5 23.0 0.295 115 59 339.5 45 24 38 96.0
KFR 4.4 20160 62.5 36.0 0.791 145 59 420 45 24 54 137.0

* Pre – stressed 3mm.**Power link applications.
