Typical application: SHIP & INDUSTRY
Temperature range: -15 / +80 deg. C
Mounting with Grinnel/Victaulic couplings
Manual operators: DN 50 – 150 lever, DN 200 – 300 gear
| PART | MATERIAL |
|---|---|
| Body | Ductile Iron GGG 40.3/EN-GJS-400-18 |
| Disc | Alu/Brz C958 |
| Stem | AISI 316 |
| Taper pin | Monel |
| Gasket | NBR (BUNA-N) |
| Bearings | PTFE |
| Bolts | 8.8 Galv |

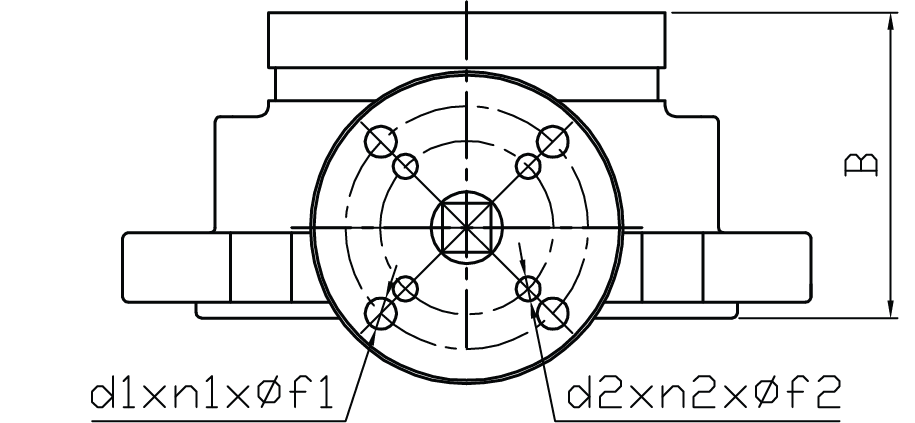

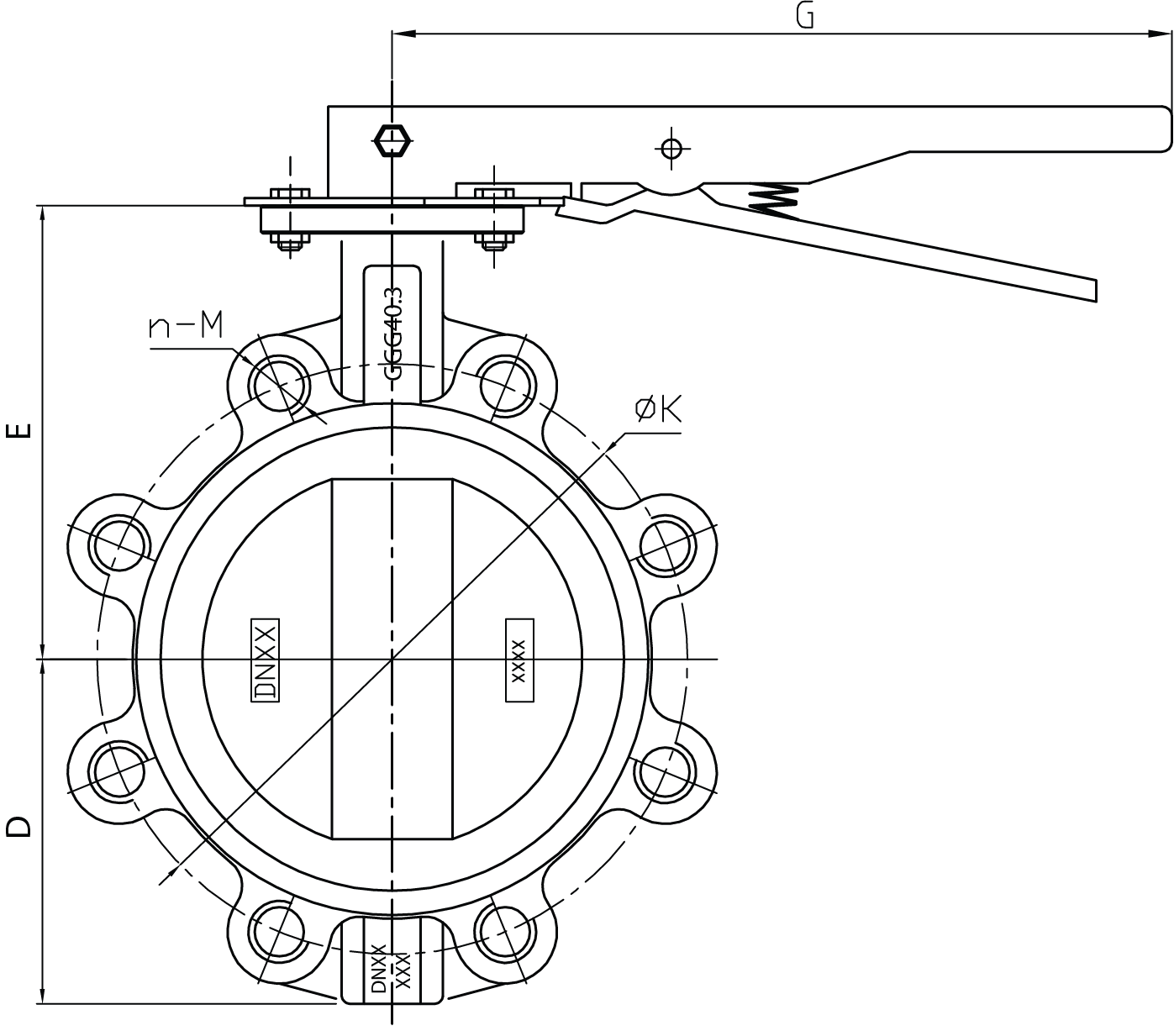

| DN / OD | ART. NR. MANUAL | ART. NR. FREE TOP | HXH mm | ISO TOP | A mm | B mm | C mm | D mm | E mm | F mm | G mm | J mm | I mm | ØK | n-M | VEKT kg* | PRESSURE RATING |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 / 60,3 | 5560662 | 5560622 | 11 | F05/07 | 133,3 | 76,3 | 57 | 80 | 124 | 30 | 267 | 125 | 4-M16 | 6,7 | PN 16 | ||
| 65 / 76,1 | 5560663 | 5560623 | 11 | F05/07 | 138,6 | 79,8 | 58,8 | 89 | 134 | 30 | 267 | 145 | 4-M16 | 8,1 | PN 16 | ||
| 80 / 88,9 | 5560664 | 5560624 | 11 | F05/07 | 139,1 | 80,3 | 58,8 | 95 | 141 | 30 | 267 | 160 | 8-M16 | 10,5 | PN 16 | ||
| 100 / 114,3 | 5560665 | 5560625 | 14 | F05/07 | 153,4 | 88 | 65,4 | 114 | 156 | 30 | 267 | 180 | 8-M16 | 13,2 | PN 16 | ||
| 125 / 139,7 | 5560666 | 5560626 | 14 | F07 | 161,9 | 91,5 | 70,4 | 127 | 168 | 30 | 267 | 210 | 8-M20 | 16,3 | PN 16 | ||
| 150 / 168,3 | 5560667 | 5560627 | 17 | F07 | 172 | 102 | 70 | 140 | 184 | 30 | 267 | 240 | 8-M20 | 22,4 | PN 16 | ||
| 200 / 219,1 | 5560668 | 5560628 | 17 | F07/10 | 185 | 110 | 75 | 175 | 213 | 35 | 233 | 77 | 290 | 295 | 8-M20 | 31,3 | PN 10 |
| 250 / 273 | 5560669 | 5560629 | 22 | F10 | 199 | 122 | 77 | 221 | 244 | 38 | 266 | 77 | 290 | 350 | 12-M20 | ? | PN 10 |
| 300 / 323 | 5560671 | 5560631 | 27 | F12 | 213 | 135,5 | 77,5 | 255 | 283 | 38 | 266 | 77 | 290 | 400 | 12-M20 | ? | PN 10 |
EN 10204 – 3.1 certificate available. *Free top
